Automatic Rescue Device

Features

In case of a main power supply failure, the lift stopped between two floors in moved to floor level, the automatic door is opened and passengers are come our safely, For lifts with automatic door, in case of a main power supply failure at floor level, the door is remain opened

Technical Specification

Input Voltage:- Three Phase 440VAC, 50Hz Sine Wave Main Line Voltage.
Output Voltage: Two Phase 440VAC, 50Hz Modified Square wave with power                                            Booster. Single Phase 230VAC, 50Hz.

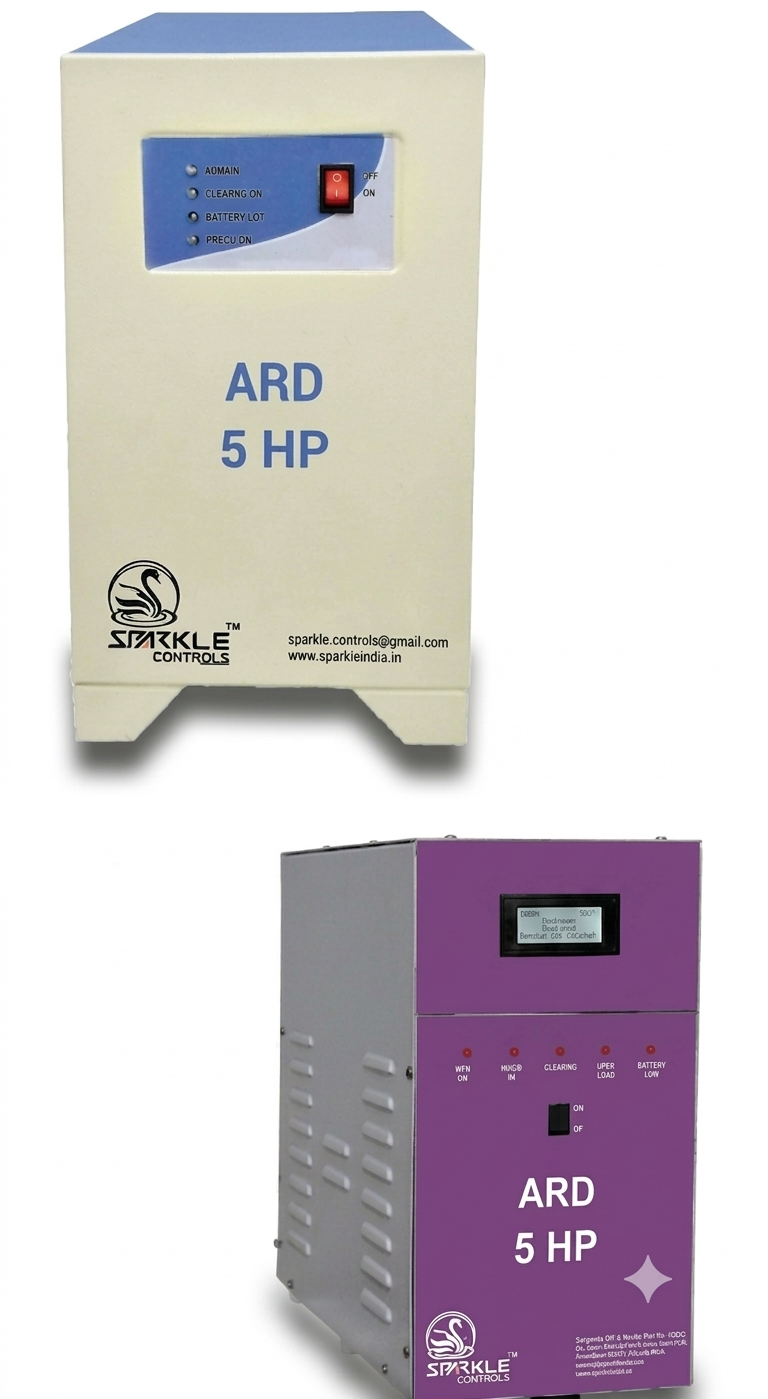

Battery Voltage: Sealed Lead Acid Rechargeable Battery of 12V 7.0Ah and no. of                                       Batteries depend upon the Motor Rating.ARD 5 HP
Available Models: 5HP, 7.5HP, 10HP, 15HP
